BALLISTIC ADJUSTABLE MOUNT

BAM

Ballistic Adjustable Mount

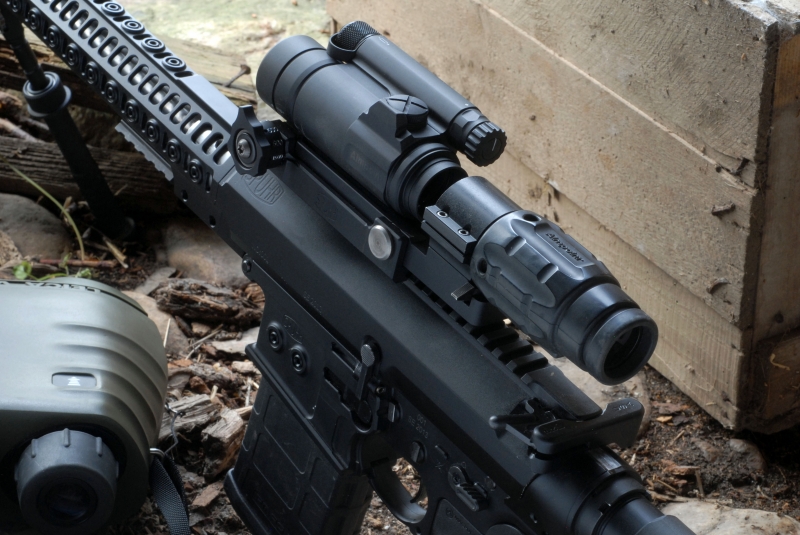

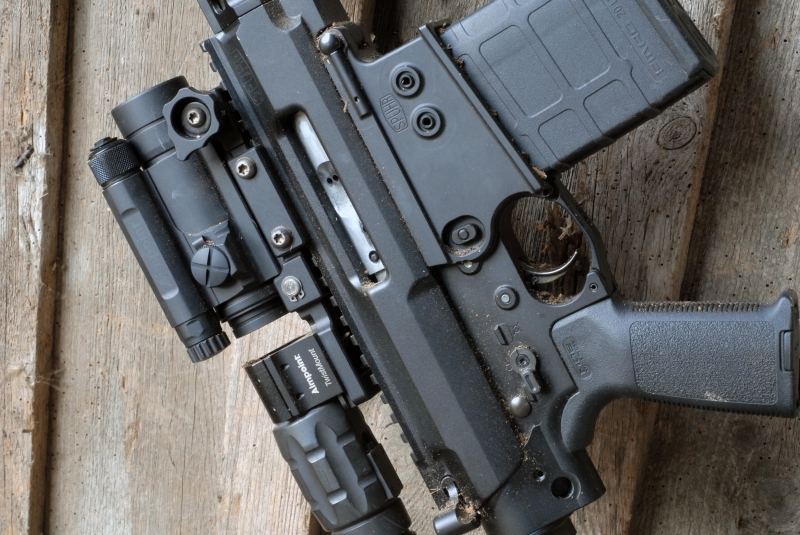

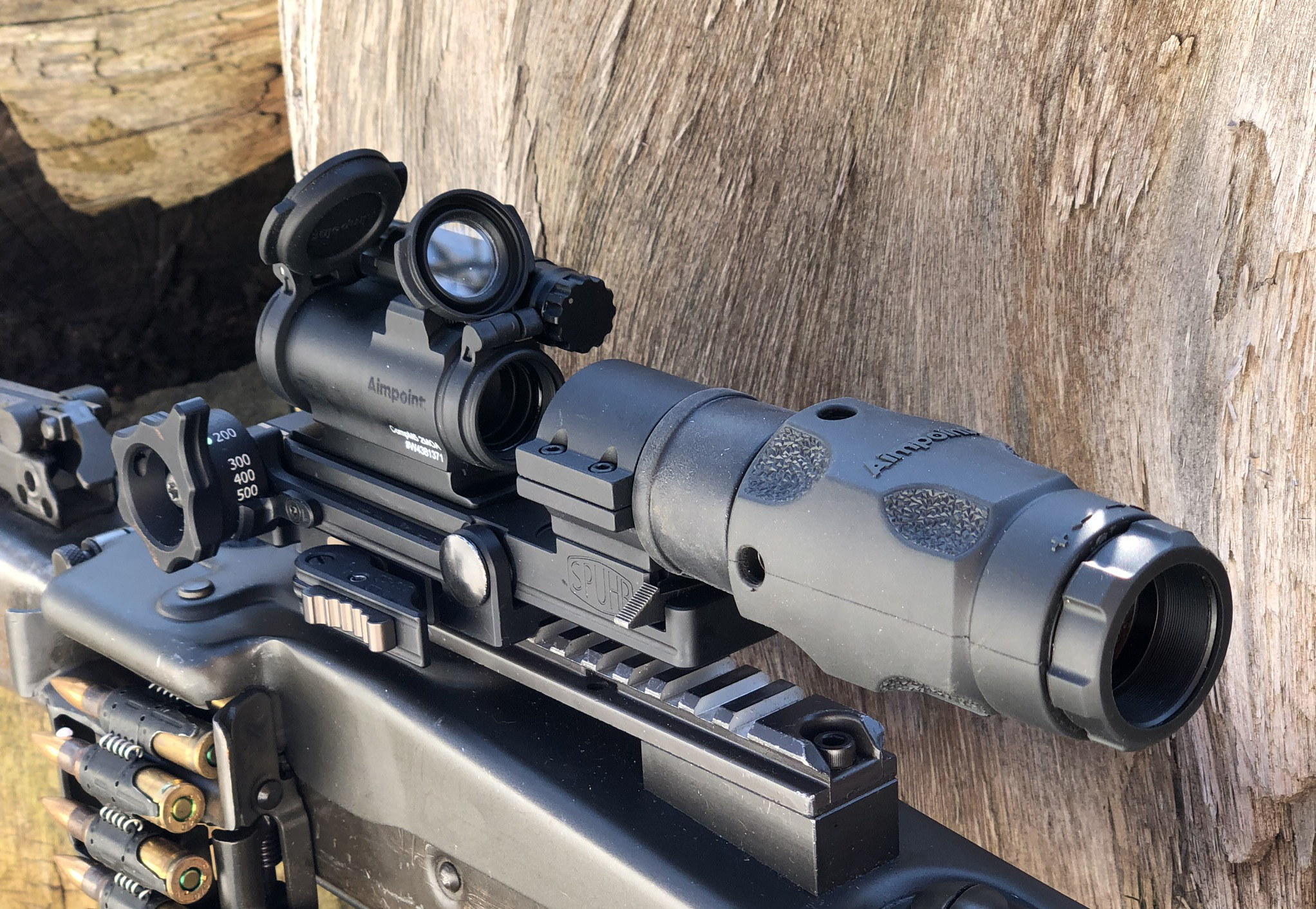

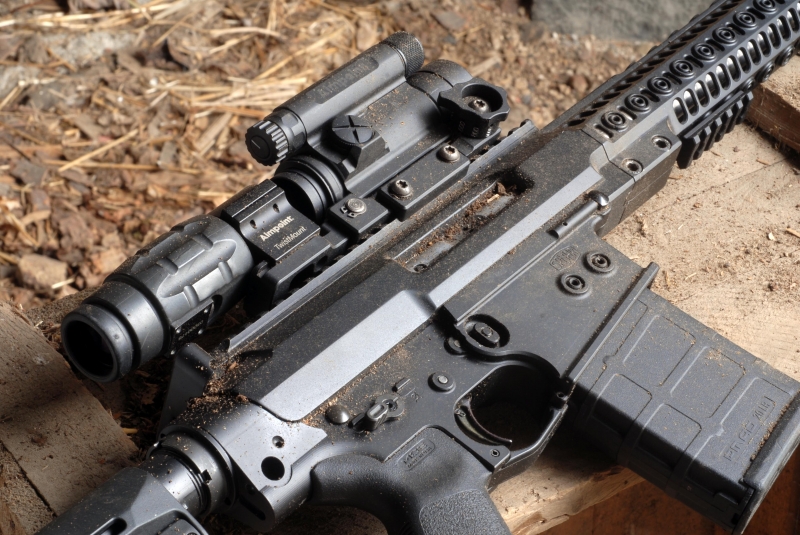

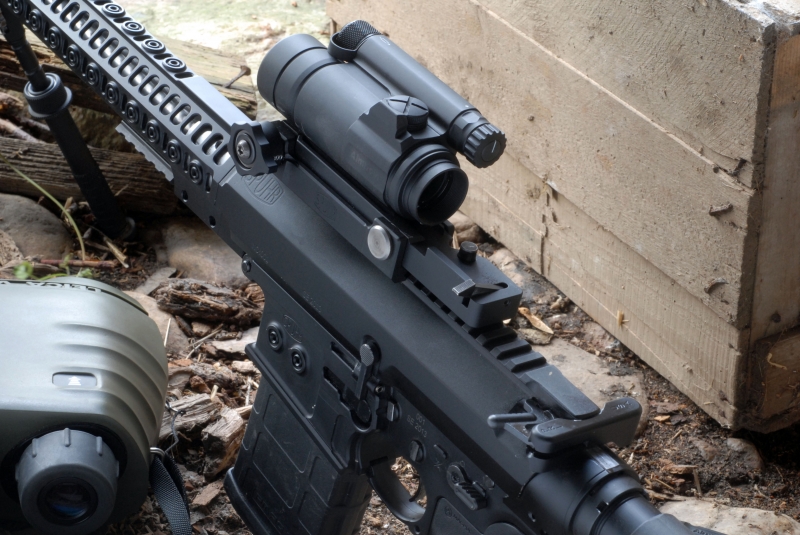

The BAM mount is intended to provide Aimpoint M4 sight’s with multiple distance settings. It comes as standard with settings for either 5,56 or 7,62 and it´s fully ambidextrous and can be read and adjusted from either side.

As the integral Aimpoint twistmount moves parallel with the sight the aimpoint dot will always be centered in the magnifier or NV device that is attached. For use in low light the 50/200 meter setting have one afterglowing dot to quick and easy show the user that the sight is correctly adjusted.

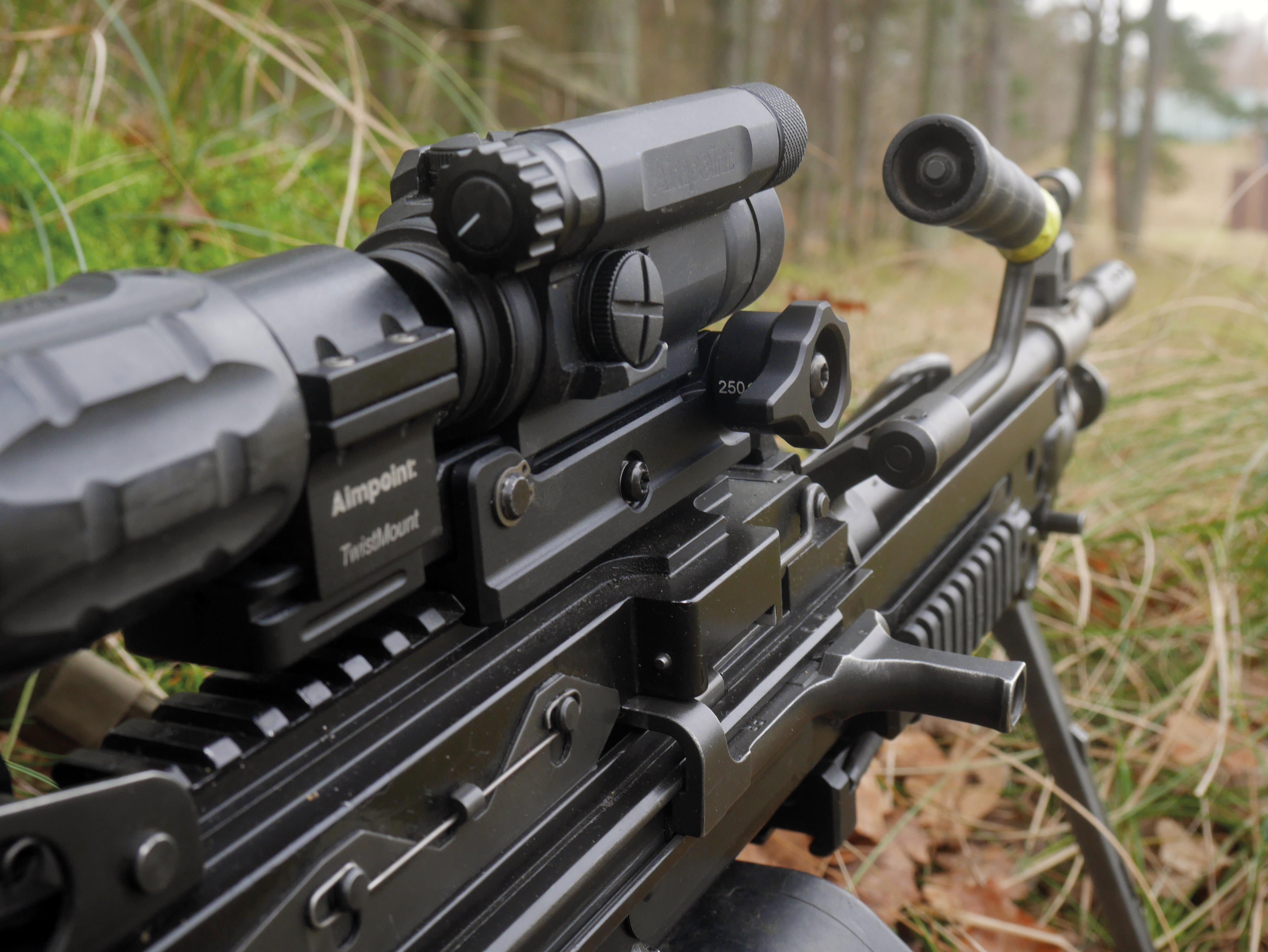

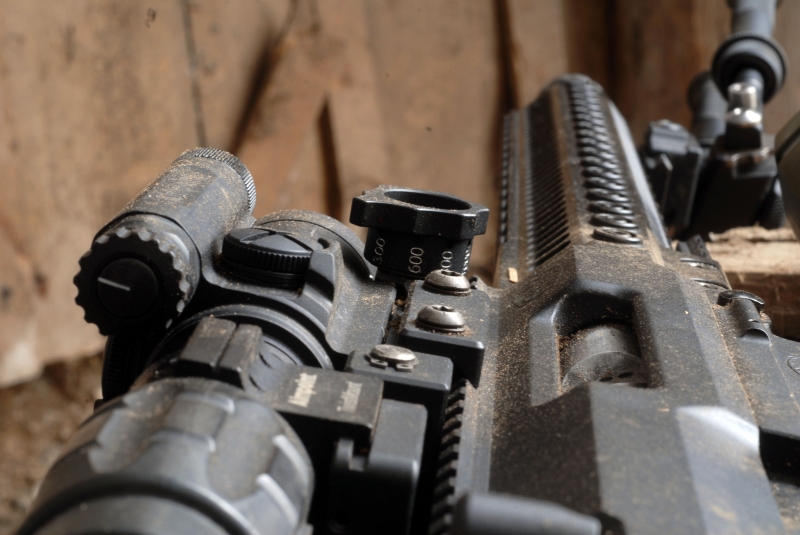

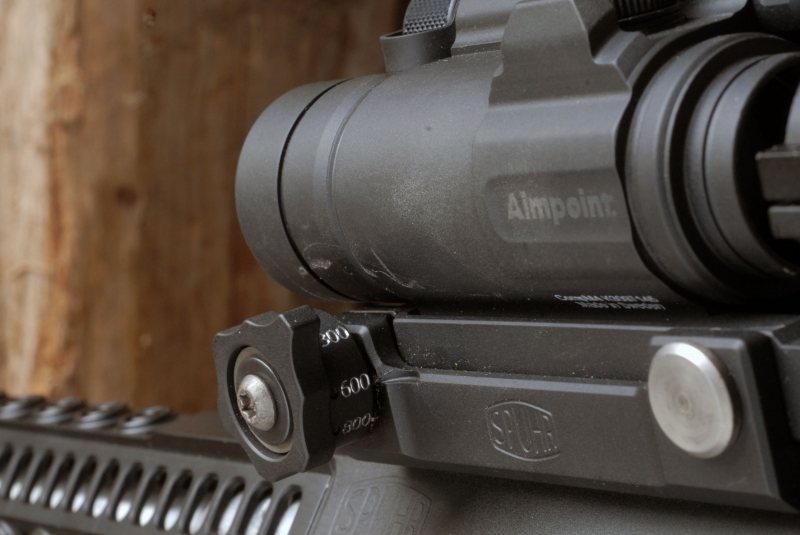

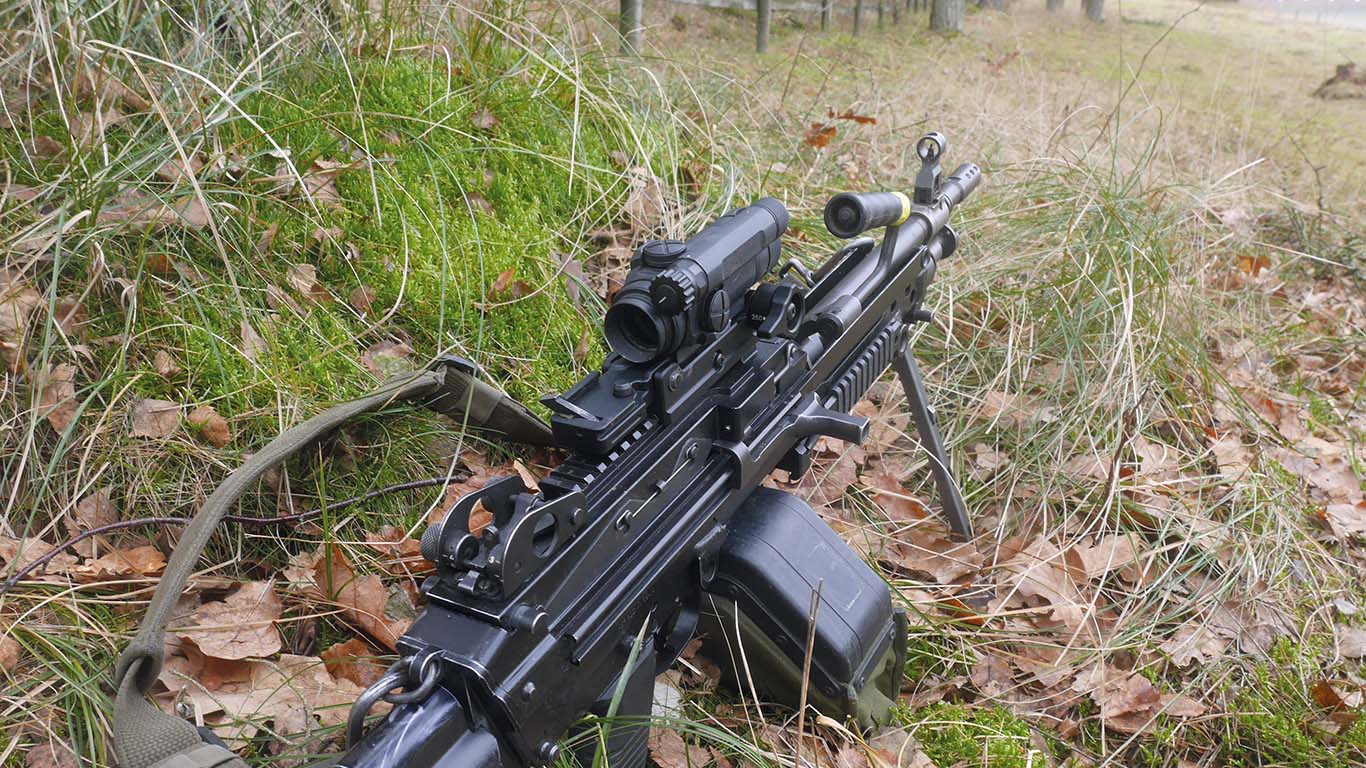

The ambidextrous knob on the BAM is having visible and fellable “tongue” so that the user know when the “tongue” is in it’s rearward position. Then the sight is at the 50/200 meter setting, that position is choosed as the ballistic curves are the same. If a gun is zeroed at 50 meters it´s also zeroed at 200 meter with the same setting. That is very practical for control purposes as it’s not always possible to get access to long shooting ranges. The BAM works equally well both for rifles and machineguns.

As with all other Spuhr products the BAM can be customer specified with other distances if the customer orders it in some quantity.

The settings for 5,56 is: 50/200-400-500-600-700-800 meters.
The setting for 7,62 is: 50/200-400-500-600-700-800-900-1.000 meters.

Specifications
Weight: 315 gram/0.694 lb
Optical Height: 39 mm/1,518”
Length: 163 mm/6,417”

Part No: SM-101QD-1, 7.62 mm
Part No: SM-101QD-2 ,5.56 mm
(fixed mount on special order)
